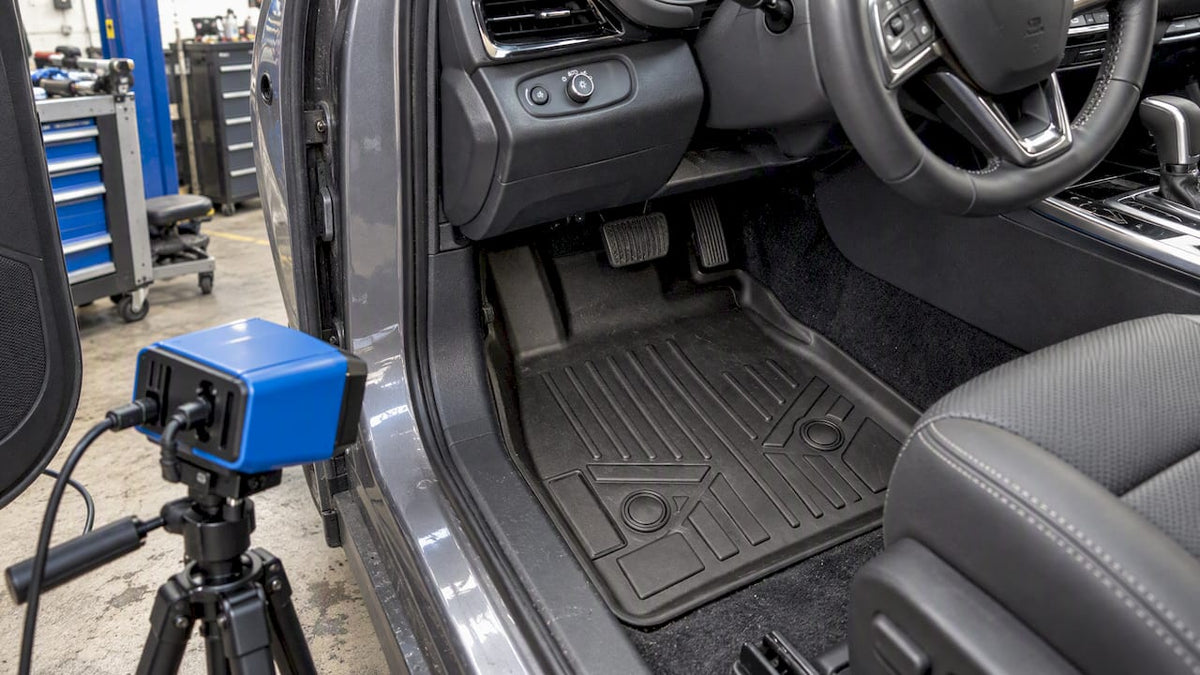

SMARTLINER liner fitted in vehicle footwell

3D Scanned Floor Mats: Edge to Edge Fit Without Trim to Fit Guesswork

For the tightest, factory-like coverage and the most reliable retention, choose laser-measured, 3D-scanned custom-fit floor liners over any trim-to-fit alternative. We build our catalog from precise scan data, which translates into snug edge-to-edge fit, dependable spill containment, and non-slip performance that holds up to daily use.

TL;DR:

  • Confirm that the liner locks onto your vehicle’s factory retention clips; friction alone may let it shift beneath your feet and interfere with pedal operation.
  • Choose raised edges, deep channels, and sidewall clearance for spill containment; TPE and rubber based materials resist cold weather and wipe clean easily.
  • Provide your VIN, model year, and trim because console shapes, seat mounts, and floor humps can vary within the same vehicle model.
  • Production timing depends on your exact configuration, order volume, scanning method, and whether new tooling is required, so confirm an estimate before ordering.
  • During installation, anchor the liner to factory clips before pressing its edges into place, then recheck the clips after the first week.
Smartliner-usa
Get a Precise Fit for Your Vehicle
Smartliner’s custom-fit floor mats use precise fit technology to help protect your vehicle from mud, spills, and dirt.
Explore Smartliner mats

Table of Contents

What “3D scanned” or laser-measured custom-fit really means

A laser-measured liner starts with a digital cast of the vehicle’s floor pan, not a tape measure or a generic template. Technicians use structured light or handheld laser and optical scanners to capture the exact contours of the footwell, including curves around pedals, consoles, and seat tracks. This scan-first approach lets designers build parts against real interior geometry instead of estimating it, which is why reverse-engineering specialists describe the result as a digital cast that fits like a factory component.

Once captured, the raw scan becomes a point cloud: millions of coordinates describing every ridge and recess of the floor. Engineers then convert that cloud into a CAD model, flatten it into a two-dimensional template, and use it to cut tooling or production molds. Engineering case studies describe this process using tools like Creaform Handyscan 700 scanners feeding into SOLIDWORKS to produce cutting templates.

A few practicalities shape accuracy along the way:

  • Multiple reference targets keep registration stable across large or complex surfaces.
  • Glossy or metallic trim sometimes needs a thin matting spray to reduce glare during the scanning process.
  • Moving parts like shifters or handbrakes get scanned through their full range of motion so the finished liner clears them at every position.

Key features and evaluation checklist for 3D-scanned floor mats

Not every “custom fit” claim means the same thing, so it helps to judge offerings against a consistent set of criteria before buying.

  1. Fit and retention: confirm the liner locks onto your vehicle’s factory clips rather than relying on friction alone. Independent testing identifies OEM clip compatibility as a primary safety factor, since a mat that shifts underfoot can interfere with pedal operation.
  2. Coverage design: look for raised lips, trench-style channels, and clearance around sidewalls and drivetrain humps. These features determine how much liquid or debris the liner actually contains rather than just covers.
  3. Material and performance: most laser-measured liners use TPE or rubber-like blends that resist cracking in cold weather and wipe clean easily, a pattern consistent with tested all-weather liners that favor deep channels and resilient thermoplastics.
  4. Manufacturing fidelity: a single dedicated scan of your exact trim tends to outperform a templated fit borrowed from a similar model year, especially around console variants and seat mounting differences.
  5. Timeline and cost drivers: scanning method, order volume, and whether new tooling is required all affect how quickly a custom liner reaches your door.

Our retention clip guide walks through a five-minute check you can run on any vehicle to confirm your current mats, or a replacement set, anchor securely.

Pro Tip: Measure your footwell at its narrowest point before ordering; a liner engineered for the tightest clearance will fit cleanly everywhere else, too.

How our laser-measured product family maps to the checklist

Each line in the catalog targets a different ownership need while holding to the same scan-based fit standard.

  • SMARTLINER Floor Liners suit daily drivers who want all-weather protection and easy wipe-down cleaning. These address retention through factory-clip compatibility and coverage through raised edges that contain spills, mud, and road salt.
  • SMARTLINER Truck Bed Mat Liners extend the same scan-based precision to cargo areas, where a loose-fitting liner can shift under a heavy load. A tight bed fit improves retention during hauling and keeps cargo protection consistent over rough terrain.
  • Our testing product demonstrates the same fit approach applied to a narrower use case, showing how the scan-to-template workflow holds up across different vehicle sections.

For buyers weighing custom-fit against trim-to-fit options, our comparison guide breaks down where a generic mat falls short on coverage and retention. Every product line draws on the same recyclable material standard, so the choice between them comes down to which part of the vehicle you want to protect first, not a tradeoff in fit quality.

How to order and what to expect from measurement to install

Getting a precision-fit liner on your floor follows a short, predictable path.

  1. Choose your ordering path: select from our catalog by VIN or model and trim, or request a scan-assisted fit review for less common configurations.
  2. Supply vehicle details: VIN, model year, and trim matter because console shapes, seat mounts, and floor humps vary even within the same model line.
  3. Expect a production timeline: once your exact specifications are confirmed, liners move from template selection to production and shipping on a schedule tied to your specific configuration.
  4. Install with the retention clips first: seat the liner onto the factory anchor points before pressing the edges into place, then smooth out any packaging creases so the mat lies flat against the floor pan.
  5. Recheck fit after the first week: rubber-like materials can relax slightly after unboxing, so a quick clip check confirms everything stays anchored.

Why precision-fit liners are worth the investment

Daily driving punishes a floor mat in ways a showroom never reveals: road salt, spilled coffee, muddy boots, and a dog that does not wait for a towel. A liner built from an actual scan of your footwell handles that abuse better than a generic mat stretched across a shape it was never designed for, because the containment geometry and the clip points were engineered for your exact vehicle. That same scan-first discipline that protects a dashboard or console build applies just as directly to the mat under your feet, and it is why we treat fit data as the foundation of every product line we ship.

— Marty

Where to buy laser-measured liners and what to do next

We carry the full catalog at SMARTLINER Custom Fit Floor Liners for passenger vehicles, SMARTLINER Custom Fit Cargo Liners for trunk space, SMARTLINER Custom Fit Truck Bed Mats for pickups, SMARTLINER HOME™ Under Sink Cabinet Mats for the kitchen, and SMARTLINER Custom Fit UTV Liners for off-road rigs. If your vehicle has an uncommon trim or console configuration, our support team can walk through fit questions before you order. For a deeper look at how our recyclable materials hold up against premium-priced alternatives, our materials overview covers the details. Check your model’s availability today and get a liner built around your exact floor pan.

Where to buy laser-measured liners and what to do next — overview diagram

FAQ

What does “3D scanned” mean for a floor mat?

It means the liner’s shape comes from a digital scan of your vehicle’s actual footwell rather than a generic template. That scan data becomes a CAD model used to cut production tooling, so the final part mirrors your floor pan’s real contours, including curves around pedals and consoles.

How do I know a custom-fit mat will stay in place?

Check that it locks onto your vehicle’s factory retention clips rather than relying on backing friction alone. Independent testing points to OEM clip compatibility as the most reliable way to prevent a mat from shifting underfoot.

Are scan-based liners better than universal trim-to-fit mats?

Scan-based liners are built against your vehicle’s exact geometry, which typically gives tighter edge coverage and better clip alignment than a universal mat trimmed down by hand. Our buyer’s comparison walks through where trim-to-fit options tend to fall short on containment.

How long does it take to get a custom-fit liner?

Lead time depends on your specific trim, whether new tooling is needed, and current order volume, so timelines vary by configuration. Our support team can give you a specific estimate once your vehicle details are confirmed.

How do I clean and maintain a laser-measured liner?

Most laser-measured liners use TPE or rubber-like materials that wipe clean with mild soap and water, with raised channels designed to trap liquid and debris until you can rinse it out. Regular cleaning along the edges helps the retention clips stay free of buildup that could affect fit over time.
